性能特点 Characteristics of performance

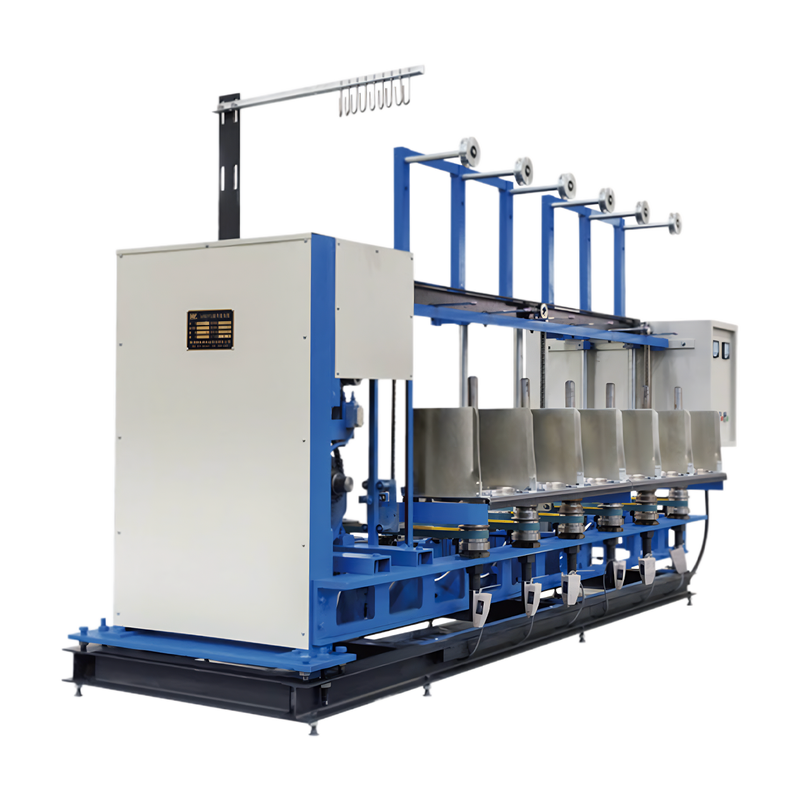

本机为 12年开发的高效收卷加捻一体机直接配套拉丝机，15-90 根单丝收卷加捻一次完成捻线范围 20-32 捻，与绳机配套最为理想，省却了以前普通收卷机这一道环节，整机采用刹车电机控制，操作简单效率高
The machine for 12 years in the development of efficient winding, directly supporting twisting machine wire drawingmachine, 15-90 monofilament winding twisting a complete twist, twisting range 20-32, ideal and rope machine, dispensewith common winding machine before this one, the whole machine adopts the brake motor control, simple operation, highefficiency.
主要技术参数 Main technical specifications
| 操作形式 Operative form | 单面操控 整机 15-21 锭钢令 8-10 寸锭距 375mm Single control machine 15 to 21 ingot, steel for 8 to 10 inches, spindle pitch 375 mm |
| 锭子 Model of spindle | 培星 300 型锭速 2800-3200 转/分 Star type 300, spindle speed, 2800-3200 revolutions per minute |
| 电机功率 Power of motor (kw) | 12-15kw |
| 外形尺寸 Overall dimensions (m) | (7-9)x1.1x2.2 |
| 全机重量 Total weight (kg) | 2000 |
