性能特点 Characteristics of performance

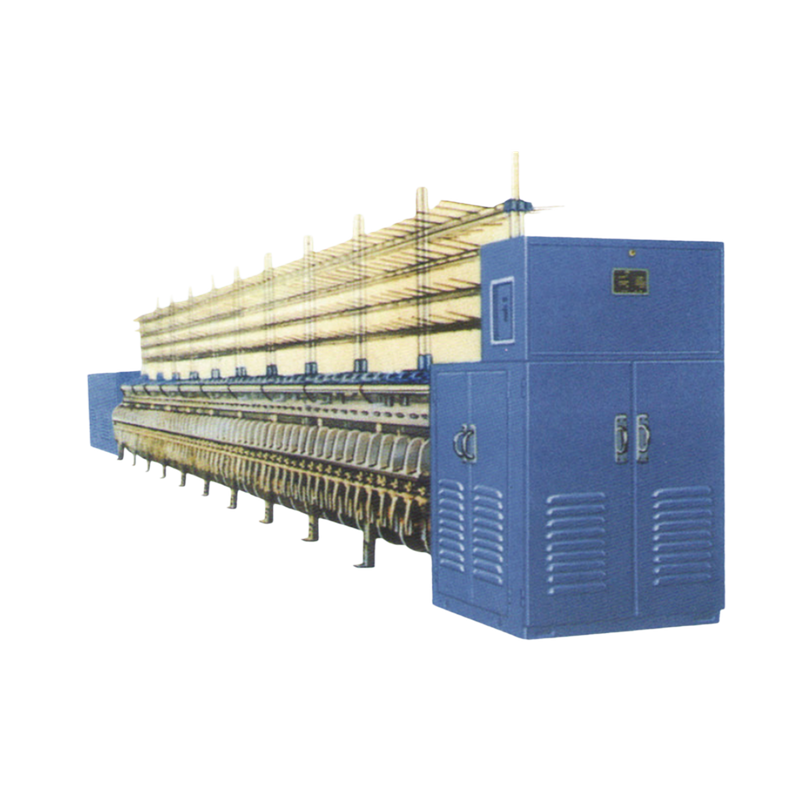

该机为高效捻线机，设有捻向变换机构，罗拉防逆转装置，安全保险装置及先进的行星变向升降机构，合股捻线道工序一次完成，并可做成塔筒形，为制线毛纺解决倒筒难的问题，为九十年代新一代捻线机
The product is high effective twister and has set the mechanism of twisting direction changing, anti-conversingturning device for roler, safe device and lifting mechanism with planetry direction exchanging. Two procedures of twinecan be finished in one time. Meanwhile it can be made in the form of tower cylinder and has solved the different problemof backwinding in thread making and wool spinning. lt is 1990's new generation twister.
主要技术参数 Main technical specifications
| 操作形式 Operative form | 双面操作 Operation of double faces | 捻度范围 Scope of twist | 60-609 捻(Turns)/m |
| 锭数 Quantity of spindle | 120 可适当增(Canincrease and decrease suitably) | 钢令升降Listingmovement动程 of traveler ring (mm) | 205 |
| 锭速 Speed of spindle(rpm) | 2800-5730 | 罗拉直径 Dia.of roller (mm) | ∅51 ∅57 |
| 锭子 Model of spindle | D2503 | 电机功率 Power of motor (kw) | 15 |
| 锭距 Distance of spindle (mm) | 186 | 外形尺寸 Overall dimensions (m) | 13.5 x1.13x2.15 |
| 钢令直径 Dia of traveler ring(mm) | ∅140 | 全机重量 Total weight (kg) | 6800 |
| 捻向 Twisting direction | Z或S ZorS | ||
适用范围 Suitable scope
21 支5股~36 股纱，2000D~5000D 纤维，36 tex 3~36 股聚乙烯的加捻或合股
21 counts 5 strands~36 strands yarn, 2000D~5000D fiber, 36 tex 3~36 strands PE twisting or twine.
