性能特点 Characteristics of performance

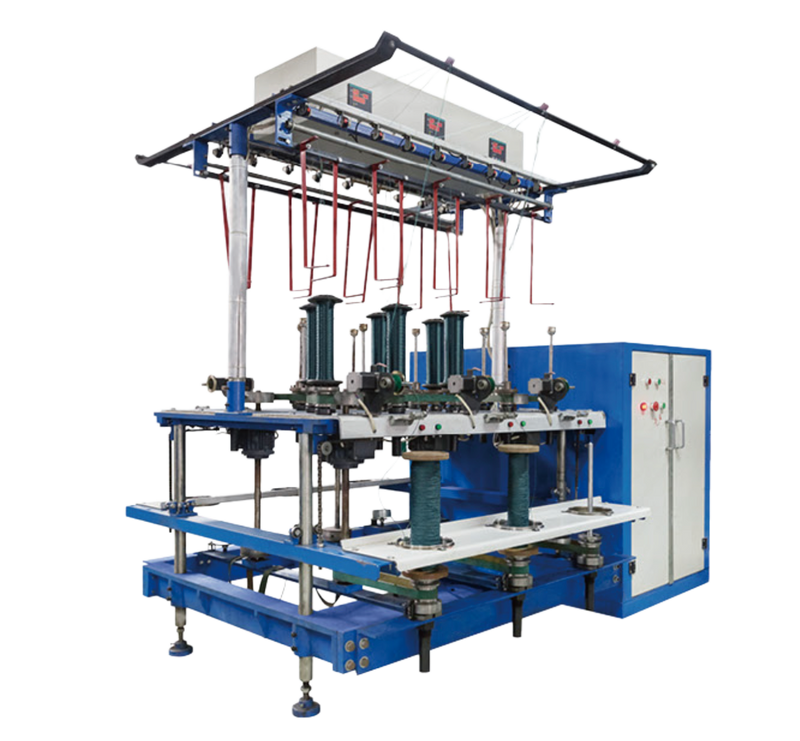

本机为我公司开发的一代一步法捻线机,高效节能省人工断纱单锭自停满管自停专业针对 6-18 线的一次加工成形,公司于 16年获得三项国家专利,为 813814传统机的升级换代机型,经用户24小时不停机生产,每吨渔网线成品节省电费达 600 元以上
This machine is my company developed the latest generation of one-step twisting machine, high efficiency andenergy saving province labor, broken yarn spindle automatic stop, ful tube stop, professional for 6 to 18 line forming inone time, the company received about three national patents, in 16 years 813, 814, the upgrading of traditional machinemodels, 24 hours after the user line production, net line per ton product power savings of 600 yuan of above.
主要技术参数 Main technical specifications
| 上锭 On the spindle | 90-126 锭2404 型锭子转速 6500 转/分90-126 pounds, 2404 type of spindle, speed 6500 r/min |
| 下锭 The spindle | 30-42 锭1507 型锭子钢令6寸转速 3500-4500 转/分30-42 pounds, 1507 type of spindle, steel to 6 inches, rotational speed of 3500-4500 revolutions per minute |
| 电机功率 Power of motor (kw) | 整机 6-9kw The whole machine 6-9 kw |
| 外形尺寸 Overall dimensions (m) | 10x2.5x2.8 |
| 全机重量 Total weight (kg) | 3000 |
