性能特点 Characteristics of performance

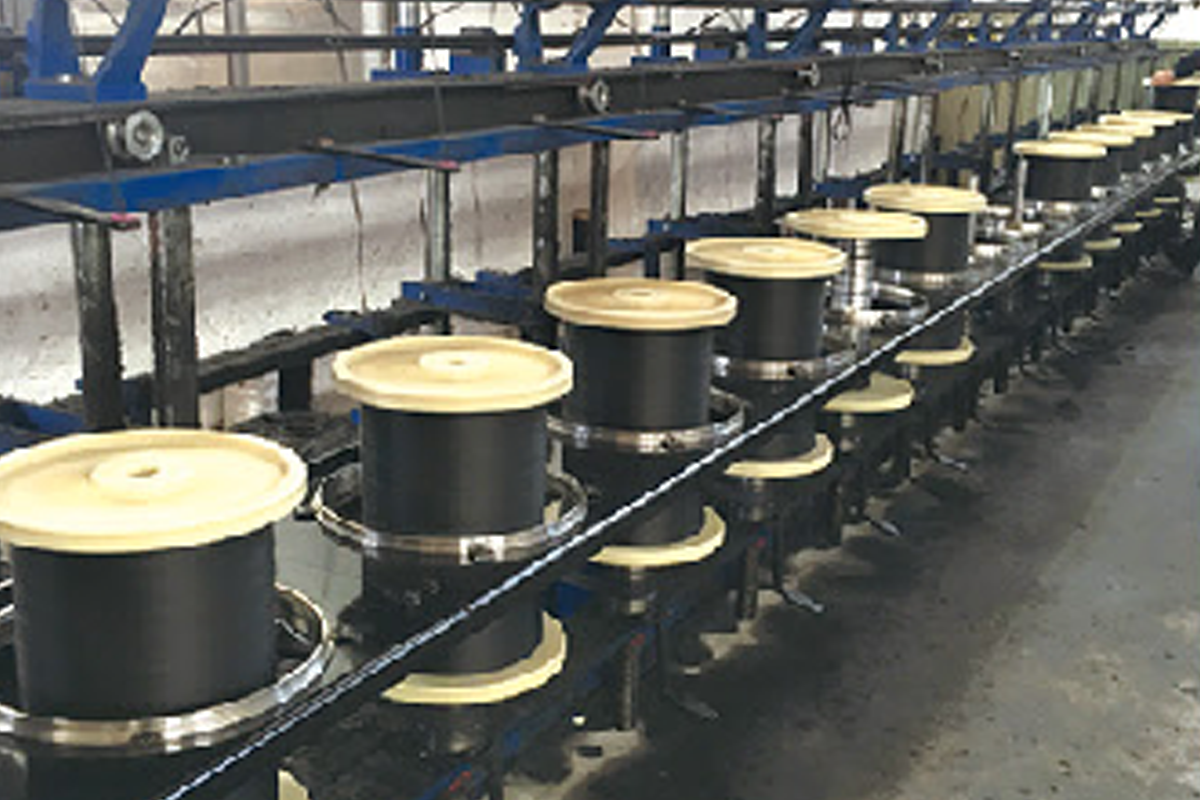

本机为特大钢令，卷装量达7千克/锭，聚乙烯丝合股可达0.2x96股，该机已通过省级鉴定，达到国内先进水平，填补国内外空白，是一种高效率，高产量的捻线合股机，适用于聚乙烯渔网线初复捻锦纶线，地毯线的复捻工程等
This machine is of large steel making, packagequantity up to 7 kg/ingot. Polyethylene wire strandingcan reach 0.2 x 96 shares, the machine has passed theprovincial appraisal, reached domestic advanced level,fill the gaps in the province, is a kind of high efficiency!high yield of twisting stranding machine, suitable fopolyethylene fishing nets at the beginning of the line, afteltwist, nylon line, after twist of carpet line engineering, etc.
主要技术参数 Main technical specifications
| 操作形式 Operative form | 单面操作 Operation of single faces | 捻度范围 Scope of twist | 35-270 捻(Turns)/m |
| 锭数 Quantity of spindle | 12-15 | 钢令升降Listingmovement 动程 of traveler ring(mm) | 300-500 |
| 锭速 Speed of spindle (rpm) | 1800-2100 | 罗拉直径 Dia. of roller(mm) | ∅57 |
| 锭距 Distance of spindle (mm) | 375-610 | 电机功率 Power of motor(kw) | 7.5-11 |
| 钢令直径 Dia of traveler ring (mm) | ∅254 ∅300 ∅350 | 外形尺寸 Overall dimensions (m) | 5.95x1.1x2.2 |
| 捻向 Twisting direction | Z或S ZorS | 全机重量 Total weight(kg) | 2800-3500 |
适用范围 Suitable scope
21 支5股~180 股纱，850D~15000D 纤维，36 tex21~90股聚乙烯的加捻或合股
21 counts 5 strands ~180 strands yarn, 850D-15000D fiber, 36 tex 21~90 strands twisting or twine.
